Productdetails:
Betalen & Verzenden Algemene voorwaarden:
|
Power Source: | AC | Merknaam: | Hengda |
---|---|---|---|
model: | 2-w-4.0/10 | Snelheid: | 1050 r.p.m |
Gewicht: | 1060 kg | Diemnsion: | 2050×1530×1500 mm |
Hoog licht: | hoge druk luchtcompressor,stille luchtcompressor |

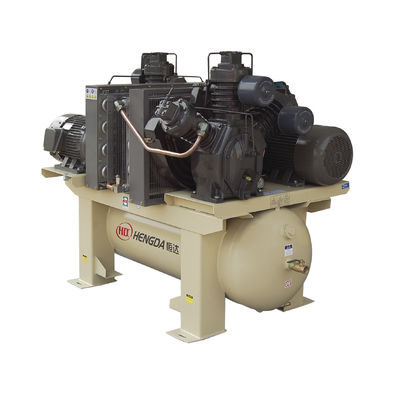

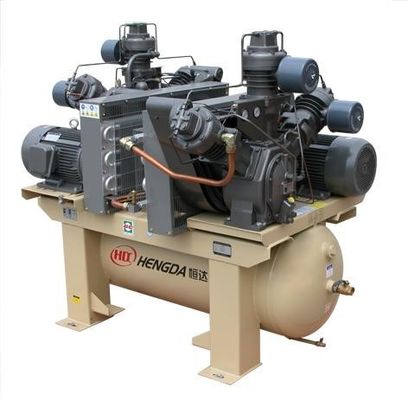

Lichtgewicht Stil van de de Zuigerlucht van de 10 Bar Lage Druk Compressorw Type 4 M3/min
Snel Detail:
Naam |
Luchtcompressor |
Merknaam |
Hengda |
Capaciteit |
4 M3/Min |
Druk |
10 bar |
Functie |
samengeperste lucht |
Gebruik |
Leverings samengeperste lucht voor Pneumatische delen |
Toepassingen:
1.Supply samengeperste lucht
2. De levering comressed lucht voor pneumatische delen van het vullen machine, verpakkingsmachines.
10bar luchtcompressor
1. NIEUWIGHEID: 4.0 m3/min
2. hoge druk: 10 bar
3. snelheid: 1050 t/min
4. ISO en Ce
Gedetailleerde Configuratie: 10bar luchtcompressor
1. De compressor kan afval en vuil automatisch langs na koelsysteem verwijderen. De lucht van uitstekende kwaliteit uit E-D met een speciale, hoogst efficiënte luchtkoelingsharder van geavanceerd ontwerp.
2. Hoofd de luchtklep markt van leiders „Herbiger“ met grote capaciteit. Zijn hoog rendementkenmerk verzekert het stabiele runnen van compressor.put toe te schrijven aan het economische systeem van de vuilverwijdering in 3 stadia.
3. De compressor is uitgerust met een speciale, hoogst efficiënte luchtkoelingsharder van geavanceerd ontwerp.
Specificatie voor luchtcompressor:
Model |
F.A.D (m3/min) |
Druk (MPa/maximum) |
Macht (KW) |
Snelheid (r/min) |
Grootte (mm) |
Gewicht (kg) |
|
V-type |
V-0.8/10 |
0.8 |
1.0 |
7.5 |
910 |
1465×680×1130 |
357 |
V-1.0/12 |
1.0 |
1.2 |
7.5 |
830 |
1730×610×1320 |
405 |
|
V-0.8/18 |
0.8 |
1.8 |
9 |
720 |
1730×610×1320 |
405 |
|
V-1.4/7 |
1.4 |
0.7 |
11 |
1050 |
1720×750×1340 |
530 |
|
V-1.3/10 |
1.3 |
1.0 |
11 |
1050 |
1720×750×1340 |
530 |
|
V-1.2/18 |
1.2 |
1.8 |
11 |
900 |
1750×800×1400 |
620 |
|
|
|||||||
W-type |
W-1.6/10 |
1.6 |
1.0 |
15 |
950 |
1700×760×1440 |
500 |
W-2.0/8 |
2.0 |
0.8 |
15 |
1000 |
1700×760×1440 |
505 |
|
W-2.5/10 |
2.5 |
1.0 |
22 |
940 |
1840×870×1550 |
760 |
|
W-2.8/10 |
2.8 |
1.0 |
22 |
1100 |
1840×870×1550 |
775 |
|
W-3.0/10 |
3.0 |
1.0 |
22 |
1100 |
1840×870×1550 |
765 |
|
W-2.2/14 |
2.2 |
1.4 |
22 |
980 |
1840×870×1550 |
772 |
|
|
|||||||
W-type in twee stadia |
2-w-4.0/10 |
4.0 |
1.0 |
2×15 |
1050 |
2050×1530×1500 |
1060 |
2-w-6.0/10 |
6.0 |
1.0 |
2×22 |
1100 |
2150×1400×1550 |
1440 |
|
W-type In drie stadia |
3-w-9.0/10 |
9.0 |
1.0 |
3×22 |
1100 |
2800×2000×1200 |
2100 |
